  • TD04 Conversion (Heaps of pics)

    Here's all the pics. check out the damage on the turbo wheel. dunno what thats from'

    Photobucket

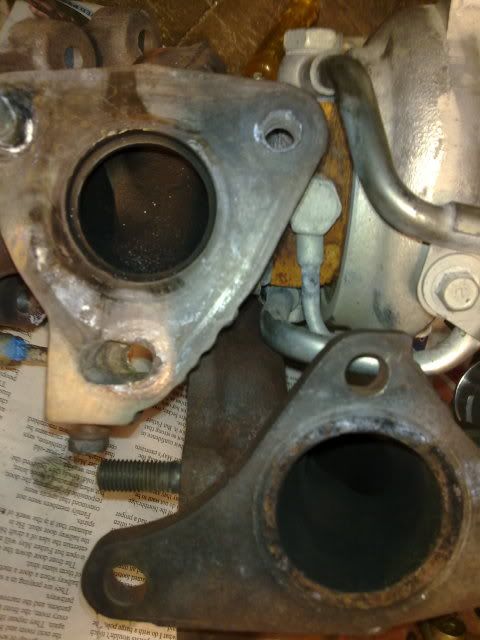

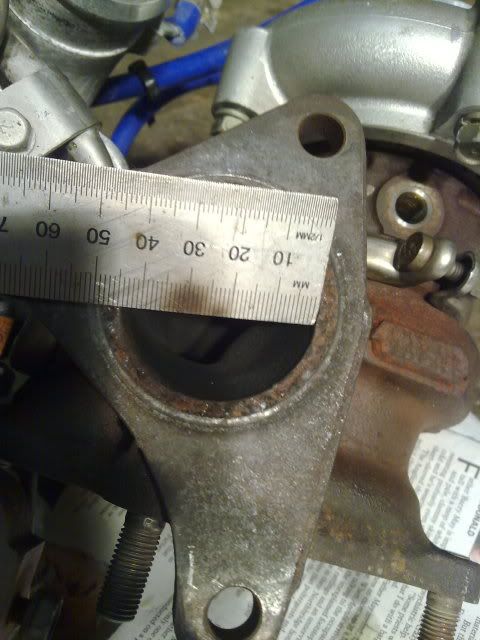

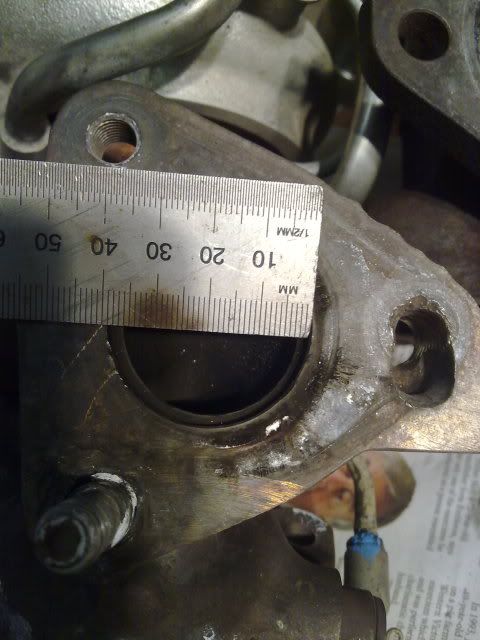

    Stock vs td exhaust inlet

    Photobucket

    Photobucket

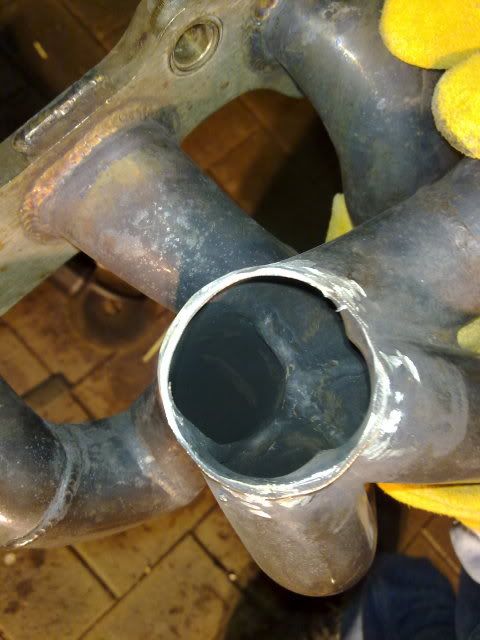

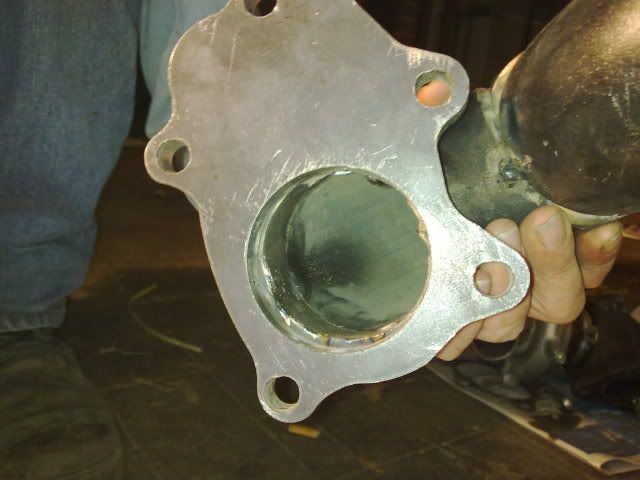

    Prepped manifold

    Photobucket

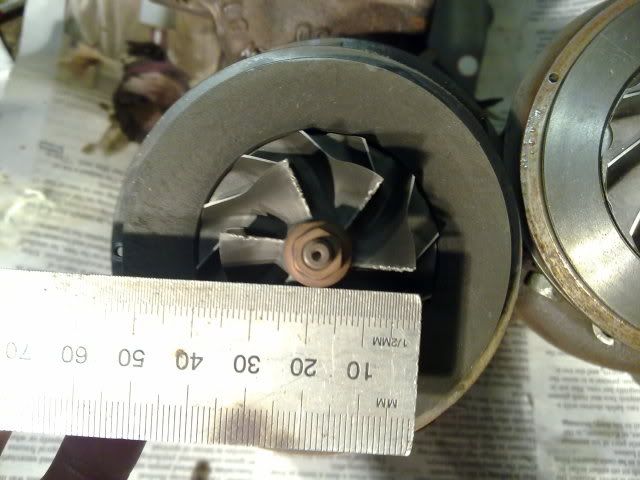

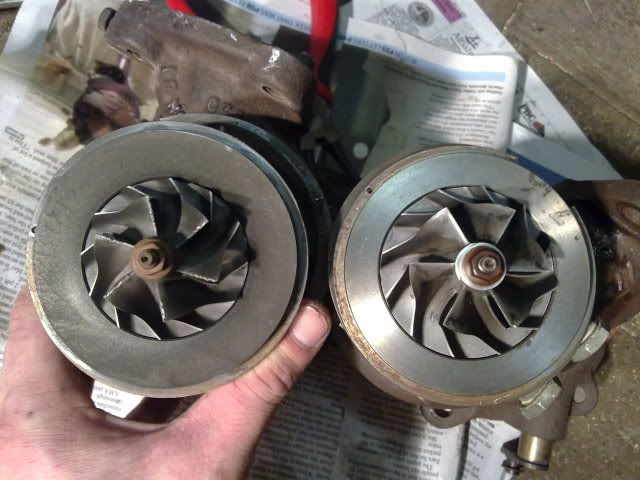

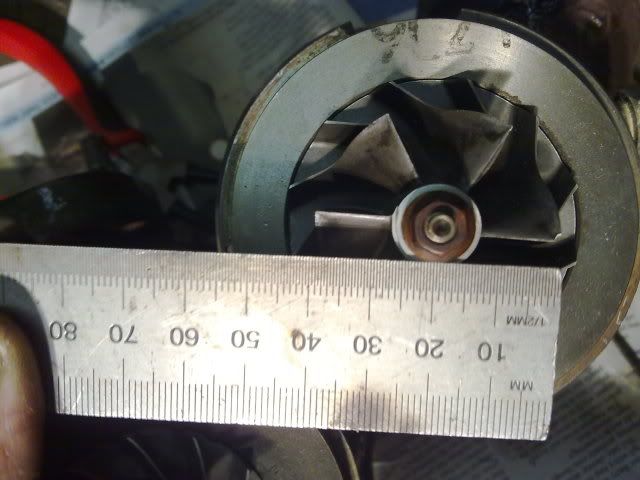

    Compressor wheel comparison

    Photobucket

    Photobucket

    Photobucket

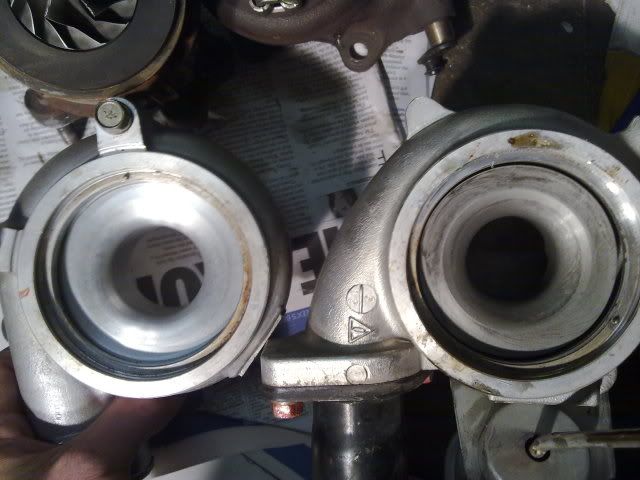

    Inducer housing

    Photobucket

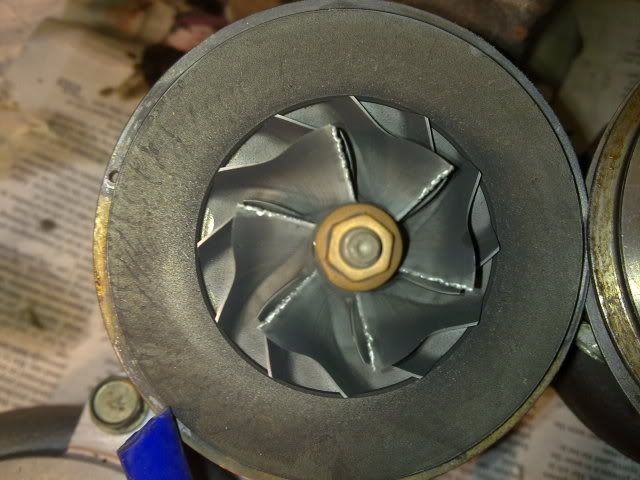

    Unexplained damage

    Photobucket

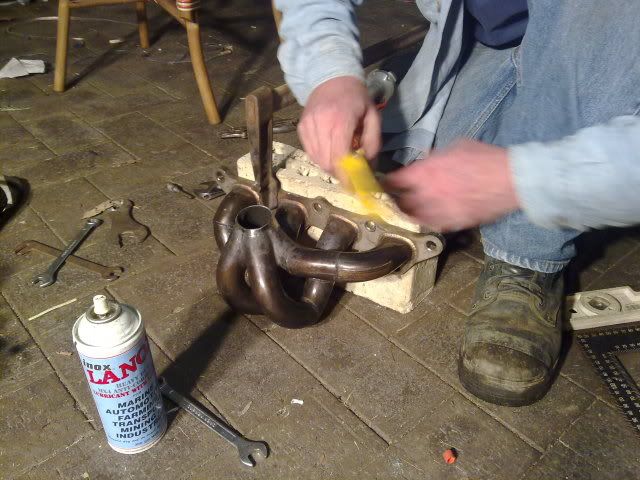

    Mick the master Starting the manifold

    Photobucket

    Photobucket

    Some welding

    Photobucket

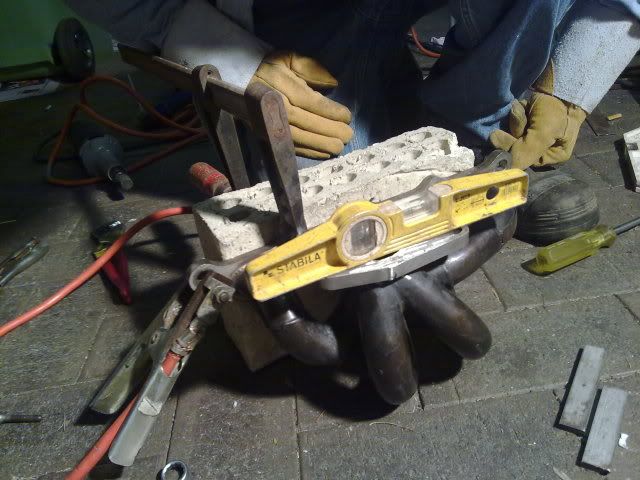

    Checking the level.

    Photobucket

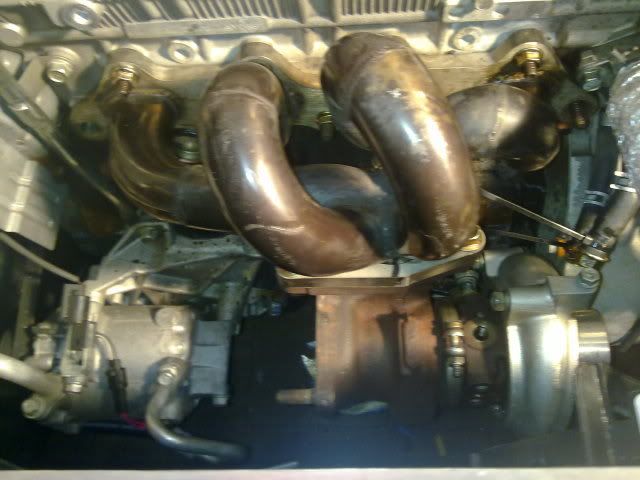

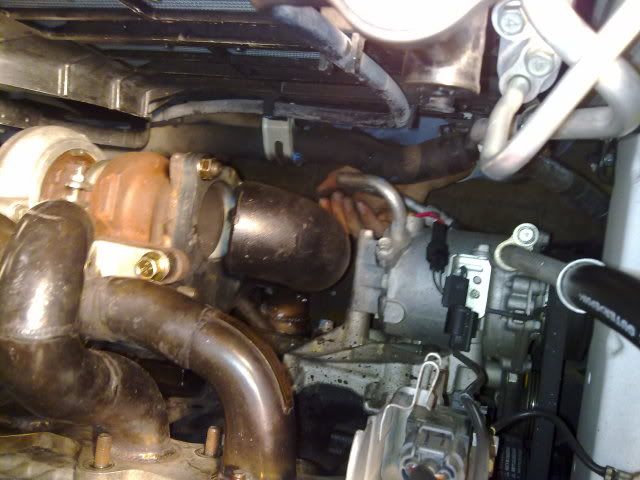

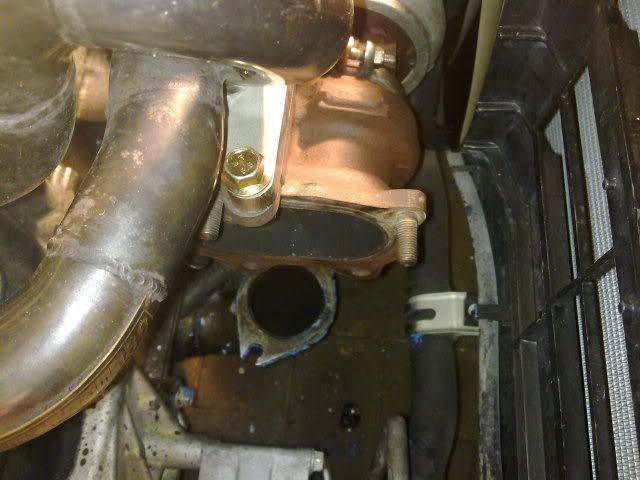

    Tacked and fitted in position

    Photobucket

    Photobucket

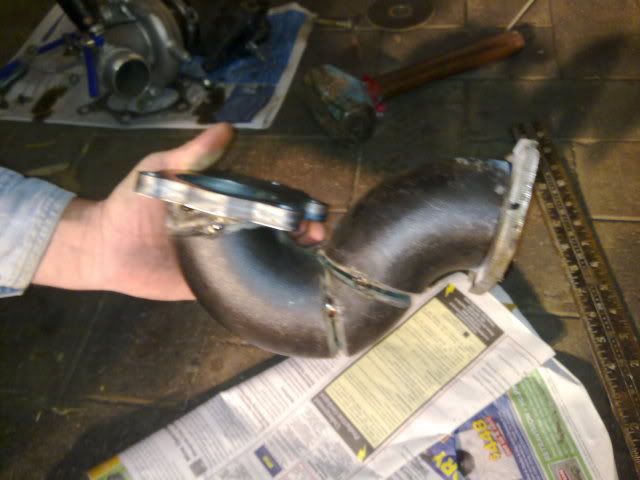

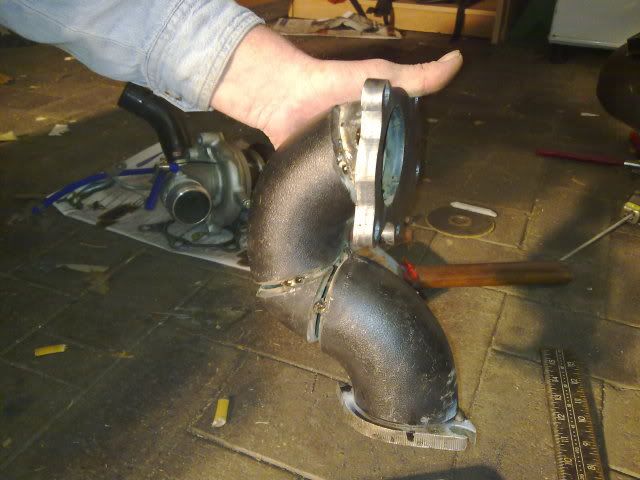

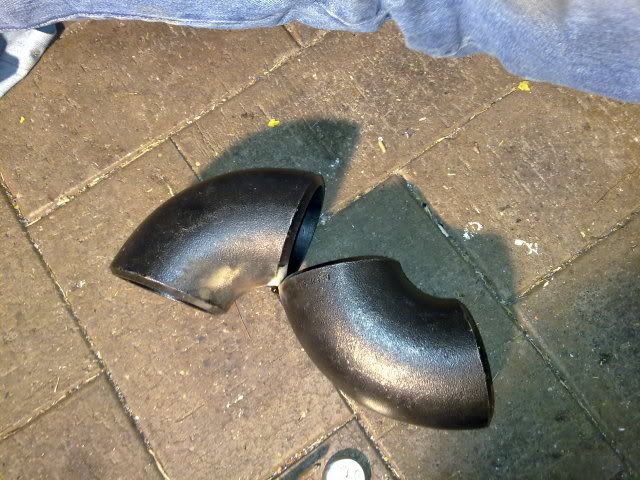

    Starting the dump pipe

    Photobucket

    Photobucket

    Sifu in action

    Photobucket

    Photobucket

    All tacked up

    Photobucket

    Photobucket

    Photobucket

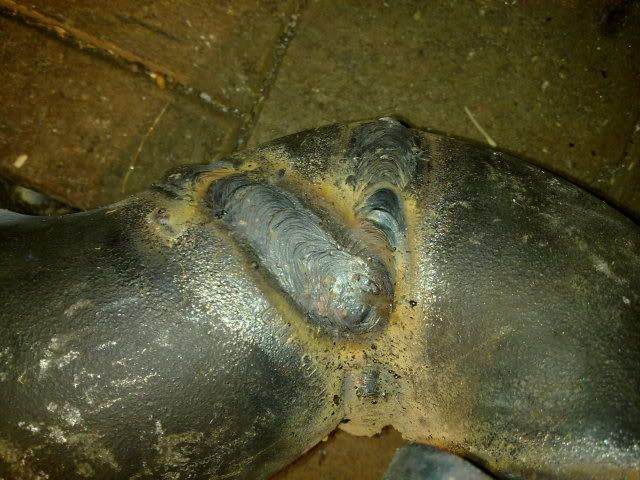

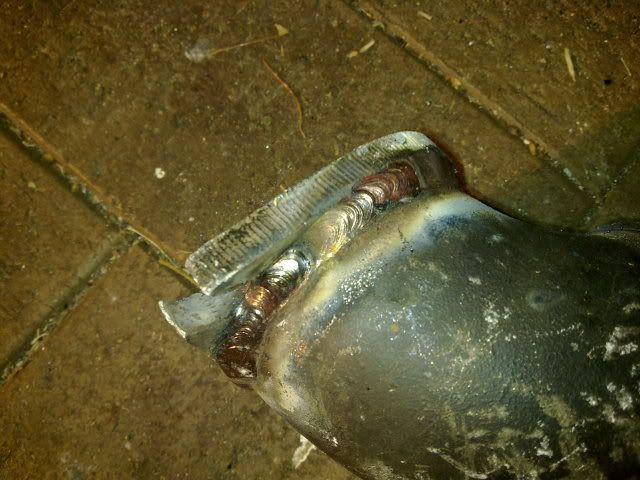

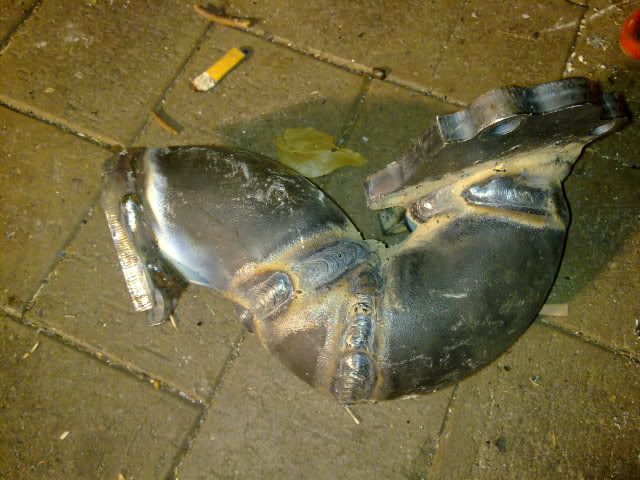

    All welded up..with a stick welder. remember this is sched 40 material. i wish i'd taken some photos after we finished it and cleaned it. seriously some amazing welding

    Photobucket

    Photobucket

    Photobucket

    and the stupid thing about it is i dont even have a photo atm of it all mounted and in place. here's a quick vid though' listen to the hilarious flutter

    http://www.youtube.com/watch?v=Qdh05WcKnQo

  • #2
    Originally posted by daedalusjc View Post
    and the stupid thing about it is i dont even have a photo atm of it all mounted and in place. here's a quick vid though' listen to the hilarious flutter
    its cuz u got excited to put her back together and take it out for a run

    Comment


    • #3
      Photobucket

      Photobucket

      Photobucket

      Photobucket

      Photobucket

      Comment


      • #4
        done any 0-100 times with ya phone yet??

        Comment


        • #5
          Daed what ECU are you running? Adaptronic? or stock?

          NICE setup man! SOOOOO tempted to keep the rcolt >

          Comment


          • #6
            Daed' self-installed an adaptronic and also popped one into jemjem's...

            Daed' will likely do an east coast trip to install adaptronics into other rcolts... Get on the list tommy!

            Comment


            • #7
              If I were you I wouldn't sell tommy, as daed has shown what's possible with the Adaptronic already (bigger turbo, launch control etc), with 200+kwatw not too far away

              Comment


              • #8
                I didn't realize you just modded the autobahn88 manifold. Rather handy it all fitted well.

                Ommeh Adaptronic

                Comment


                • #9
                  interesting how you did the dump pipe.... is the actuator on the turbo in these photos... cant quite see it. Is there enough room for the waste gate latch to open?? It doesn't look like one of the most efficient dumps with the waste gate opening directly into a peice of steel. I may have it wrong... or are you doing an external waste gate in the future??

                  Comment


                  • #10
                    it looks so easy. i hate people who can weld. fuckers.

                    Comment


                    • #11
                      So do you think this dump pipe would be ideal for TD04 applications... or is a better to have a dump properly made... cause obviously dead's version would be quite easy to have made

                      Comment


                      • #12
                        lol husky you couldnt be anymore wrong. making the dump like that was an absolute effort. we wanted optimal exhaust flow so the whole way through the dump there are no tight corners or edges just smooth flow. the wastegate didnt really matter. we figured it was opening atleast 60 - 75% and never had issues with it. trust me it wasnt an easy task to get it in there or make it. that aircons damn close. if you were going to make a new dump and downpipe it would be alot easier but we wanted it to match the stock exhaust

                        Comment


                        • #13
                          sorry daed, 'easy' was the wrong word... I can see the work in the pipe work and it doesn't look easy... i suppose what i was getting at was it looks like an easier concept or 'simpler' concept than having to manipulate steel to the shape of the base plate... I like the idea of it... if it works well. I understand totally, the amount of work in the turns of the pipe work

                          Comment


                          • #14
                            nah your right mate no offense taken. it'd be easy if mick and i werent so picky i guess. you could put one together and have it so-so but we tend to be a bit finicky. um the base plate for the td04 we took a gasket in and just got it laser cut and got the outlet hole put in the place we wanted. the tf035 is alot easier due to its offset angled outlet anyway whereas the td04 tends to exit flush

                            Comment


                            • #15
                              Hey daed, how hard was it removing the original flange off the turbo manifold? If it comes to it I may also go this route to fitting another turbo. Though it may also be wise I guess for someone like me to give it to a shop to do... :P
